How to create a bar chart¶

We are now going to take a look at how to create a bar chart, but this time we will not use statically created values like in the section addChart.

When making a calculator the data normally has to be… calculated (surprising, right?) based on the input given by the user. Behind this calculation there is always a function that depends on some parameters, normally it’s either x or time, but could be anything.

To create the data we will use a for loop and we will use the method push which adds a new entry at the end of an array. Our ‘entry’ represents a point and is an array with the values we want to display.

Practical example¶

We first define the example function: f(x) = xⁿ + offset. We will display the data from x = a to x = b. The user will input two different values for n and offset giving us the chance to show several datasets in one graph.

Our goal here is to create a bar chart that will show two different functions together. The user will define n and offset for each of our functions.

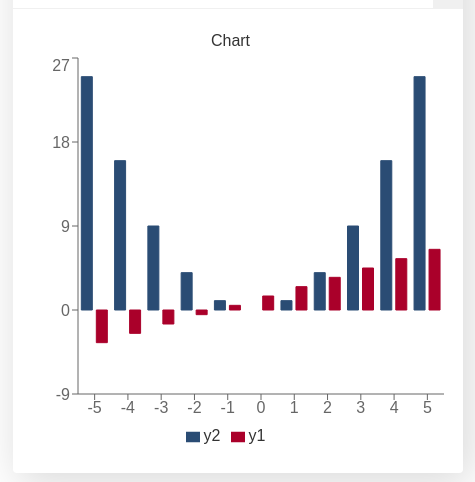

Example of a bar chart with two user defined functions

We have chosen the following colours for this chart: red2 (for n1 and offset1) and blue (for n2 and offset2) which corresponds to positions 11 and 1 in the array of data [1] as shown in the color coding in charts picture we showed in a previous section.

Warning

The position of the labels need to match the position of the data in the array, otherwise the data will not be shown.

Code and comments¶

Let’s look that the example code now:

'use strict';

omni.onResult(['a','b','offset1','n1','n2','offset2'],function(ctx){
    var chartData = [],
        n1 = ctx.getNumberValue('n1'),
        n2 = ctx.getNumberValue('n2'),
        offset1 = ctx.getNumberValue('offset1'),
        offset2 = ctx.getNumberValue('offset2'),
        a = ctx.getNumberValue('a'),
        b = ctx.getNumberValue('b');
    for(var i = a; i <= b; i++){
        chartData.push([mathjs.format(i,2), // x-value
                        mathjs.pow(i, n2)+offset2, // yellow y-value
                        ,,,,,,,,,      // black data to match color
                        mathjs.pow(i, n1)+offset1 // first y-value
                    ]);
    }
    ctx.addChart({type: 'bar',
                    labels: ['x', 'y2',,,,,,,,,, 'y1'],
                    data: chartData,
                    title: "Chart",
                    afterVariable: "",
                    alwaysShown: false
                });
});

As you can see, there is little to not difference between making a basic bar chart and making a line or area chart. We have purposely not activated the option to stack the data as this option is very prone to errors.

Warning

WARNING: Stacking option only works in very specific and simple scenarios. Before you use it we recommenc you check the section Stacking a.k.a. playing Jenga.

The bar chart is ideal for situations in which data is presented in chunks (a.k.a. discrete data). Financial calculators make the most use out of it to show monthly payments/earnings or any other kind of data where we are interested in the total value over a period of time rather than instantaneous values.

Tip

For cleaner code that is easy to understand consider using functions when performing complex operations inside the for loop. You might also want to look up the Advanced uses of arrays section or the map method.

Footnotes

[1]	The first position in an array is the position “0” (zero) and corresponds to the x-value
